 <  Neon (Z=10)  >
17Ne 18Ne 19Ne 20Ne 21Ne 22Ne 23Ne 24Ne 25Ne 26Ne
28Ne
Isotope Mass Excess [keV] Energy [keV] t1/2 Spin/Parity μ [nm] Q [b] R [fm] Ref. Std Method NSR keyword doi Comment
17Ne 16500.5 ± 0.4 0. 109.2 ms 1/2- +0.7873(14) [21Ne] CFBLS 2005GE06 10.1103/PhysRevC.71.064319
(+)0.74(3) b-NMR 2004BA12 10.1088/0954-3899/30/4/11
3.0413(88) 2013AN02 10.1016/j.adt.2011.12.006

  [▶InPACS] Shapes and deformations

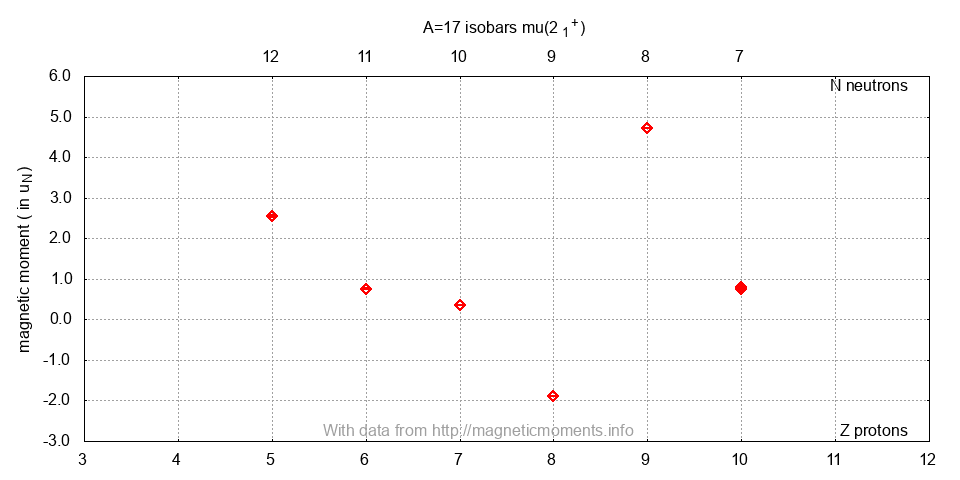

Plotting systematics is still in beta, use with caution.

Data points here: [ CSV ]

Data points here: [ CSV ]
